Market development and consequences on end-of-life management of photovoltaic implementation in Europe

Abstract

Background

The 2018 European Renewables Directive sets a binding target of 32% of renewable energy generation by 2030. Free-field photovoltaic plants are characterised by significant land use and material flows. Although country-level data on installed power is available, information about the spatial distribution of PV plants is rare. When the first photovoltaic systems will reach their end-of-life on a large scale in 2035, economic, technological and ecological challenges will arise.

Methods

The study explores the market development of photovoltaic power in the EU countries from 2008 to 2017 by preparing statistical data and Google mapping of free-field PV plants. Different approaches to assessing the land use of free-field PV systems compared to other energy systems are investigated. A comprehensive literature review addresses key issues of PV module waste treatment, hazardous constituents and their leakage in case of module breakage as well as financial issues of decommissioning and recycling and re-use of used modules.

Results

Most of the European PV electrical energy is generated by approximately 17,000 widely distributed free-field plants predominantly installed in lowlands. A local in-depth study shows that roof-top plants contribute less than 5% to the total PV energy generation in an area without extensive expansion to industrial buildings. Small amounts of hazardous substances that are typically present in PV modules are unlikely to affect the environment during normal operation of the system, but the question of leakage from broken end-of-life modules is not sufficiently clarified. While in the EU, the recycling and disposal costs are covered by producer fees and expected raw material profits; the financing of the decommissioning of thousands of PV free-field plants is still an open issue.

Conclusions

The land use of free-field PV systems should be analysed in more detail. Concerning hazardous substances, there seems to be an emerging consensus in literature that the leaching behaviour of metals from broken PV module pieces is inadequately simulated by current waste characterisation protocols. It is recommended to pay greater attention to financing the decommissioning of free-field commercial and industrial scale PV systems.

Background

The European 2009 Renewables Directive [1] obliges member states to reach together a share of 20% of energy from renewable sources by 2020. In 2018, a recast of the Renewables Directive was published by the European Commission, which foresees a binding target of 32% of renewable energy sources by 2030. Austria has a mandatory renewable energy target of 34% of the national gross final energy consumption by 2020 [2].

Besides wind energy, hydropower, and geothermal energy, free-field PV energy systems are based on a high level of direct land consumption during the energy generation stage, which characterises the renewable energy market. The land occupation of free-field PV systems in Western Styria, Austria, is 0.0192 m2a/kWh [3]. A further significant part of land consumption as energy resource is caused by biomass in terms of the cultivation of corn for biogas, rapeseed for biofuel, or poplars in short-rotation forestry for block heat and power stations. The land occupation for biomass is in the range of 0.3 m2a/kWh [3, 4]. An earlier study compared the direct land use of renewable and fossil energy systems. Biogas shows a land transformation of 0.0125 m2/kWh, hydroelectric reservoir 0.0041 m2/kWh, photovoltaic in Germany 0.0007 m2/kWh, and coal between 0.00014 m2/kWh and 0.00089 m2/kWh [5]. The calculation method of the latter study underestimates the problem of land consumption.

Since the EU Renewables Directive entered into force, a considerable number of free-field PV solar parks using different technologies, scales and locations were built all over Europe over the last years. According to the current Photovoltaic Barometer [6], in total, 106.6 GWp photovoltaic power was installed, and 114 TWh photovoltaic electrical energy was generated in the EU28 in 2017. The Fraunhofer Institute determined the cumulated photovoltaic power in Europe at 115 GWp at the end of 2017 [7].

The reported country-specific cumulative installed power of [6] does not distinguish between roof-top plants, facade integrated plants and free-field plants. The European Global Market Outlook for Solar Power provides country data of the distribution of residential, commercial, industrial and utility scale PV plants. Residential scale is defined with an installed power ≤ 10 kWp, commercial scale between 10 and 250 kWp, industrial scale > 250 kWp and utility scale > 1 MWp. Residential scale represents roof-top plants, and utility scale is defined as built on the ground. Commercial and industrial scales are not defined, and they can represent in practice both roof-top and free-field plants. In 2018, the share of the cumulative installed power of selected countries is indicated as follows: Germany, utility scale 27% and industrial scale 14%; Italy, utility scale 20% and industrial scale 40%; the UK, utility scale 63% and industrial scale 5%; Spain, utility scale 81% and industrial scale 7%; and Greece, utility scale 27% and industrial scale 23%. Belgium has a share of residential cumulative installed power of 62%. On the basis of the provided data, 5 to 95% of the respective country-specific cumulative installed power cannot be assigned with certainty to roof-top or free-field plants [8, 9].

In about 15 years, that is 2035, the first large-scale generation of PV modules throughout Europe will reach its end of life. Since 2012, the waste management of PV modules is covered by the recast of the European WEEE–Directive [10], which regulates the waste management and treatment of electrical and electronic products. In 2016, 12.3 million tonnes electronic waste (e-waste) was generated in Europe including Russia. Thereof, only 35% were documented to be collected and recycled [11]. The predicted lifetime of PV modules is more than 25 years. In 2050, a total amount of 9.5 million tonnes end-of-life PV modules is expected in Europe [12]. Best practice treatment and recycling of photovoltaic panels including heavy metals are still under development, and an economically viable waste management of all PV module technologies cannot yet be assessed.

Besides recovery and recycling of the collected modules, the deconstruction and collection logistics and their financial efforts for small-scale roof-top plants with 5 kWp or large-scale solar fields with 100 MWp are very different. There is no clear information about the numerical balance between PV modules in urban areas and modules installed in free-field plants. Figures 1, 2 and 3 show examples of small, medium, and large scale free-field PV plants in different European regions.

Fig. 1
figure1

Free-field photovoltaic plant with an installed power of 3 MWp in the mountains near Velanidia, Peloponnese region, Greece (Google Earth, 2019 [13], image recording data: 26 October 2013)

Fig. 2
figure2

Small free-field and roof-top plant in the Tuscany region, Italy (Google Earth, 2019 [13], image recording data: 8 December 2013)

Fig. 3
figure3

Free-field photovoltaic plant with 145 MWp installed on an area of 240 ha in Neuhardenberg, Germany [14] (Google Earth, 2019 [13], image recording data: 3 February 2017)

The aim of this work is to investigate the amount, location, scale, and distribution of free-field PV plants in Europe by statistical data analysis and Google mapping to get an overview on the current environmental and future end-of-life situation. Furthermore, the relation between roof-top plants and free-field plants is investigated by a local detailed analysis in South Moravia, Czech Republic. The region is chosen as it has a representative size, an effective PV expansion, and the satellite images of the entire area were of the same actual date with high image resolution.

The evaluation of land use and land occupation is generally carried out using standardised life cycle assessment methods [15, 16]. The study examines the extent to which conservative calculations and methodical approaches for determination of the land consumption reflect the current land competition of renewable energy systems.

There are economic, technological, ecological and logistical challenges to be met when the first photovoltaic systems reach their end-of-life on a large scale in 2035. The study reviews and discusses the state of knowledge and unsolved problems concerning regulations, waste treatment, content and leaching behaviour of hazardous substances and the possible financing of decommissioning of end-of-life free-field PV plants.

Materials and methods

Statistical data of photovoltaic plants in the European Union

The statistical data of installed photovoltaic power in the EU countries from 2008 to 2017 are taken from the annual renewables reports of the EU supported EurObserv’ER [6].

The cumulated installed power, the installed power per capita and the installed power per surface area for each country are determined and graphically compared. For this case, the country’s land area and population data are taken from the European Statistical Office [17].

A further set of data is used to visualise the development of the installed power of each EU country from 2008 to 2017.

Mapping of free-field photovoltaic plants in Europe

The free-field photovoltaic plants are mapped in Google Earth throughout Europe. The following sources are used to locate and map the free-field PV plants:

  • Manufacturer’s references by web search

  • Open Street Map ITOworld [18]

  • Energy Register of Greece [19]

  • Direct search in Google Earth: The findings were dependent on the date of the satellite image. Almost all satellite image data of the mapped regions were between 2017 and 2019. Older image data mainly refer to remote mountain regions where no PV systems are expected. The image resolution was high enough to clearly identify the PV plants with its typical shapes, paths and inverter stations. In few cases, there could be a possibility of confusion with foil tunnels or greenhouses.

ITOworld and Energy Register do not include complete data sets of the regional PV distribution, but they are useful sources to search deeper in the respective region.

The distribution of the found free-field PV plants is compared with the map of Photovoltaic Solar Electricity Potential in European Countries provided by the European Union [20].

Free-field and roof-top photovoltaic plants in South Moravia, Czech Republic

The Czech South Moravia region in Central Europe is investigated in detail to estimate the relation between urban roof-top plants and rural free-field plants and their respective contribution to PV energy production and the distribution of future waste modules. South Moravia is an EU NUTS 3 territorial unit [21]. The region is chosen as it has an effective PV expansion, and the high resolution satellite images were of the same actual date.

The area is 7200 km2 with a population of 1.2 million inhabitants, whereby one–third of the population lives in the region capital Brno. The free-field plants of the region South Moravia and also the roof-top plants in the city of Brno are mapped. The following data are collected and analysed by Google mapping:

  • Total number of free-field solar plants in the region of South Moravia

  • Total number of roof-top plants in Brno (city boundary) and number of modules per PV plant

The sizes of roof-top plants are divided into four categories, single–family houses up to 20 modules, multi–family houses or farm houses with 21–70 modules, midscale business or communal buildings with 71–250 modules, and large-scale plants with > 250 modules. The share of the categories is compared to the total amount of installed roof-top modules and free-field plants, respectively.

Land use of free-field photovoltaic systems

This section investigates and compares different approaches of the determination of direct land use and land occupation of renewable energy systems compared with fossil energy systems in the use phase of the life cycle based on literature data and new calculations.

Hazardous substances and leaching behaviour in damaged photovoltaic modules

PV modules can be manufactured using various technologies. This section deals with hazardous substances that may be contained in modules according to the relevant European Directives and Regulations applicable for electrical applications. Based on literature data, the type and quantity of hazardous substances are determined. A further section reviews literature on the leaching behaviour of toxic metals from broken PV module pieces.

End-of-life management of photovoltaic systems

The end-of-life management of PV systems consists of a chain of various logistical considerations and different process steps, each of which is dependent on different financial, regulatory and market conditions on national and international level. This section systematically evaluates the state of law and knowledge as well as the challenges to handle the future large mass flows of end-of-life PV modules in Europe. Based on literature, waste treatment requirements, state of the art recycling technologies, recycling fees and decommissioning costs and the question of recycling versus re-use and export are reviewed and discussed.

Results and discussion

Installed power and distribution of photovoltaic plants in the EU28

The statistical data of EurObserv’ER’s Photovoltaic Barometer [6] on the installed power of PV plants are graphically prepared. Figure 4 shows the results of the EU28 per country in three expressions: total amount, per capita and per surface area.

Fig. 4
figure4

Cumulated installed photovoltaic power in the EU28 by country, as at December 2017 (own work; data source: EurObserv’ER [6])

Germany owns the highest installed power in total as well as per capita. Eighty-six percent of the total installed power is shared by six countries, Germany, Italy, the UK, France, Spain and Belgium, in that order. The PV expansion is characterised by free-field PV plants; only Belgium has a remarkable high density of roof-top plants in all scales throughout the country, which is the result of a survey in Google Earth.

The installed power per capita shows a different picture. Germany again has the highest installed power per capita, followed by Belgium, Italy, Malta, Luxemburg, Greece and the Czech Republic. The installed power per surface area is the highest by far in Malta, followed by Belgium, Germany, the Netherlands and Italy.

The total results are notable since the global irradiation in Germany, Belgium and the Netherlands is about one third less than in Italy, Greece, Spain and Portugal (see Fig. 7). Figure 5 together with the global irradiation map in Fig. 7 indicates that there is still a high potential to exploit solar energy particularly in the Southwest European countries.

Fig. 5
figure5

Annually installed photovoltaic power in [MWp] in the EU28 by country from 2008 to 2017 (own work; data source: EurObserv’ER 2010–2018 [6])

Figure 5 shows the course of the annual installations of PV plants for each EU country based on the statistical data of EurObserv’ER’s Photovoltaic Barometer [6] from 2008 to 2017.

In Germany, the annual installed PV power was highest between 2010 and 2012, where 53% of the national cumulative power was installed. In Italy, 49% of the national cumulative power was installed within 1 year, in 2011. France had a slight expansion peak in 2011 and in the following years a continuous medium scale annual PV installation. Spain had an expansion peak in 2008, where 56% of the national cumulative PV power was installed. Belgium installed 71% of the national PV power from 2009 to 2012. Greece installed 58% of the national PV power from 2011 to 2013. The Czech Republic had an expansion peak in 2010, where 68% was installed within 1 year.

The UK started a significant PV expansion in 2011 with a peak from 2014 to 2016, where 71% of the national cumulative power was installed. Bulgaria installed 69% of the national PV power in 2012 and Romania 68% in 2013. The Netherlands started their significant PV expansion in 2012 with a continuous increase until 2017. Austria shows a relatively constant PV expansion as of 2012 on a low level. All other countries have no significant contribution to the European PV expansion.

In most EU countries, the installation activity declined due to the country-specific changing support schemes. In 2011, Europe had a total annual PV installation peak with 22 GWp and in 2012 with an annual installation of 16.7 GWp. The UK, Sweden, Hungary, Poland and Malta show significant national PV expansion activities as of 2014, whereby except of the UK and Hungary; the total European contribution is not significant. Outside the European Union, all successor states of former Yugoslavia and Albania as well as Turkey have still a high PV expansion potential.

Free-field photovoltaic plants in Europe

Free-field PV plants are mapped in Google Earth all over Europe dependent on the actuality of the satellite image data. The first survey was from 2014 where free-field PV plants of selected European regions were mapped and published in [22, 23]. Figure 6 shows an updated and revised version as of December 2019 including approximately 17,000 mapped free-field PV plants. With the exception of a few insignificant regions, the results are representative for all EU28-countries except for the blackened regions. Our count constitutes a lower estimate of the actual number of installed free-field PV plants. The regions of Ireland and Scandinavia are not mapped. The yellow markers represent PV plants which were installed until 2014/15; the orange markers show PV plants which were installed since about 2015, though there are some overlappings due to different satellite image data. The markers represent the location of the free-field PV plants, but there is no further information about the size and the installed power, which differ significantly. The supplementary materials of this work include more detailed enlarged country images of Central Europe (Figure A1), Spain (Figure A2), Italy (Figure A3), Greece (Figure A4) and the UK (Figure A5).

Fig. 6
figure6

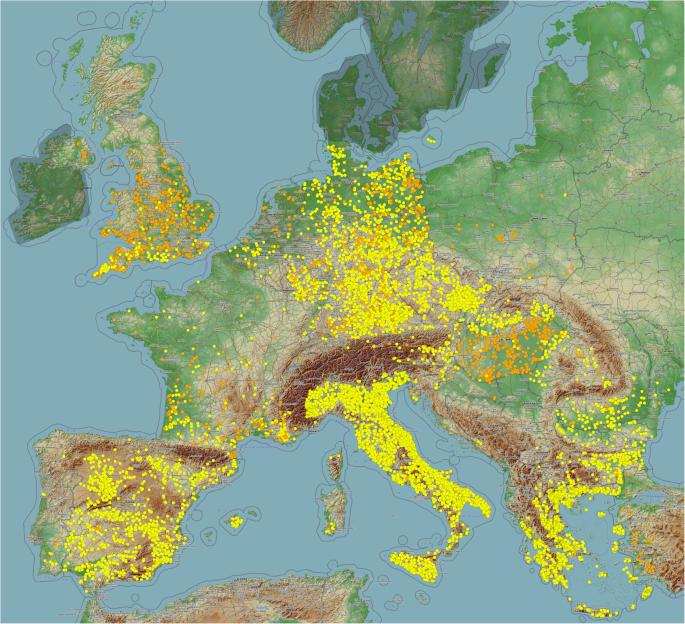

Overview of mapped free-field PV plants in Europe (yellow markers: until 2014/15, orange markers since 2015), dependent on the actuality of the satellite images. The blackened areas are not representative (own work; QGIS Map: OpenTopoMap [24])

The mapping results correspond well with the statistical data of Figs. 4 and 5. The mapped regions are compared with the PV solar electricity potential map in Fig. 7. The distribution of the free-field PV plants does not correspond to the solar radiation but most likely to the country-specific state funding. Hungary, Portugal, Croatia and Serbia had almost no activity; Romania and France had little activity compared to the good solar irradiation until 2015. Since 2015, a visible expansion of free-field PV plants has begun in Hungary, Poland, the Netherlands, as well as in Turkey. The UK, Germany and France show a continuous expansion until today.

Fig. 7
figure7

Photovoltaic solar electricity potential in European countries [20]

The size and locations of the free-field PV plants are different: Germany has a number of large-scale plants which are located on conversion areas such as former military airports and military training areas. PV plants are also found on former landfill sites, along railways and motor ways. In Italy and Greece, the PV plants tend to be smaller and thus larger in number. Middle and large scale PV plants are also located in not cultivated southern mountains. Nevertheless, in almost all countries, the greater part of free-field PV plants is located on former cultivated farm land.

A review in Google Earth shows that the first free-field PV plants were built far from settlement areas, but over the years they are getting closer and closer to the settlements.

Free-field and roof-top photovoltaic plants in South Moravia, Czech Republic

In the Czech Republic, as relatively small country in Central Europe, the total installed PV power is small. However, South Moravia represents a region with high installation activity from 2009 to 2010 comparable to the average in Central Europe, see Fig. 5a. Figure 8 displays all free-field PV plants in the region of South Moravia. In May 2014, the number of 185 free-field solar plants was counted. The largest one is located at Brno airport (Brno Tuřany) composed of 90,000 modules with an installed power of almost 22 MWp [25]. A review in Google Earth shows that since 2014 there was no further significant activity, and the relations are still valid.

Fig. 8
figure8

Distribution of free-field photovoltaic plants (yellow markers) and roof-top plants (green markers in Brno) in the region of South Moravia, Czech Republic, May 2014 (own work; QGIS Map: Google Satellite [24])

To compare the share of free-field PV plants with roof-top plants, the installed solar modules in the city of Brno (381,000 inhabitants [26]) are mapped and counted. Figure 9 shows the mapped roof-top plants as of May 2014.

Fig. 9
figure9

Roof-top solar plants (green pins) in Brno, May 2014 (own work; QGIS Map: Stamen Terrain [24])

The solar systems are distributed throughout the city. Besides the photovoltaic systems, also solar thermal systems are found and partly mapped. For small-scale roof-top plants, it is difficult to distinguish between the two systems only by satellite image. There is no information available about the amount and location of solar thermal systems in this region. But for the entire country of the Czech Republic in 2013, the cumulated installed capacity of thermal solar collectors was 680.6 MWth and 972,299 m2, respectively [27]. The South Moravian share is however uncertain. Table 1 lists the relevant results of the data collection.

Table 1 Determined roof-top solar systems in Brno, May 2014

Sixty-two percent of the counted modules belong to large-scale roof-top PV systems and 23% to the next smaller category. This means that the large number of one/two family house roof-top plants have a share of only 15% of the total roof-top PV electrical energy generation.

To determine the relation between roof-top plants and free-field plants, the module number of the 22 MWp PV plant in Brno Airport is evaluated. It consists of 90,000 modules of different sizes. Therefore, all roof-top plants of Brno including 45,000 modules make up half the installed power of one large free-field PV plant in the region. Based on 40 roughly measured areas of randomly selected free-field PV plants in South Moravia, the total proportion of roof-top PV installations and the respective electrical energy production is estimated. Compared with all 185 free-field PV plants in the region of South Moravia, the roof-top PV plants in Brno have an estimated energy contribution of 3–5%. In this current status, the urban PV electrical energy generation is insignificant.

Land use of free-field photovoltaic systems

Energy systems based on renewable sources are characterised by high land consumption compared to fossil energy sources. In the literature, the direct land use for the energy generation stage and the indirect land use for the manufacturing efforts and plant construction vary significantly. In 2009, a study provides direct land occupation results for energy systems [5]. The calculation method is based on one-time land transformation during a lifetime of 30 years, which means that the average land use results per kilowatt-hour are 30 times lower than if calculated annually. For comparison, the study results are recalculated for this study considering on an annual basis which conforms to growing seasons by multiplying the provided data with 30: biomass up to 0.375 m2a/kWh, wind 0.063 m2a/kWh, PV Germany 0.021 m2a/kWh, PV 0.0099 m2a/kWh for an annual solar irradiance of 2400 kWh/m2 and surface coal mining between 0.00129 m2a/kWh and 0.0252 m2a/kWh. Except for underground coal mining, the indirect land use data of the study are almost negligible for all systems; this also applies to PV systems.

In 2017, a further study indicates the direct land consumption for wind energy between 0.0083 m2a/kWh and 0.0472 m2a/kWh and free-field PV systems with 0.0192 m2a/kWh [3]. The Ecoinvent database [28] for life cycle assessment does not provide life cycle inventory data for the direct land use of energy systems. The LCA results of agricultural land occupation for indirect land use, i.e. for the construction of the plants, for Austria based on Ecoinvent 3.4 [28] are higher than in [5]. The results according to the LCI data of [28] are biogas 0.0085 m2a/kWh, PV systems 0.0048 m2a/kWh, lignite by surface mining 0.00153 m2a/kWh and hard coal by underground mining 0.0137 m2a/kWh. Furthermore, the total area of direct and indirect land use for Austria was determined. The results are 0.313 m2a/kWh for biomass power and heat based on maize and 0.0277 m2a/kWh for a free-field PV system located in an area with an annual solar irradiance of 1200 kWh/m2 [4].

It is important to distinguish between one-time land transformation over the energy system operation time and the land occupation during each annual vegetation season. If only the one-time land transformation is taken into account, the average land use results per generated kilowatt-hour are significantly lower, and the annual competition for land is not properly reflected. Considering further the time in which the transformed land returns to its original state, the real land occupation is additionally increased. Agricultural areas that are transformed into PV or wind areas are little affected when the energy systems are decommissioned. The situation is different with hydropower, fossil and nuclear energy systems. Coal mines are assumed to have an operating lifetime of 30 years and a subsequent land reclamation period up to 250 years. Furthermore, land consumption by secondary effects such as disturbing the natural balance of forests and ground water as well as water contamination should also be taken into account [5].

Besides general considerations about the land use and reclamation time, in 2013, a study developed a multi-level classification of more than 100 classes and subclasses of land use including levels of detail ranging from general global land cover classes to specific regionalised land use and cover classifications. Examples are terrestrial, freshwater and marine biomes which are further specified from climate regions and ecoregions to geo-referenced information of land use/cover such as forest and grass land types, agricultural types, urban area types or different water bodies [29].

The European Product Environmental Footprint Category Rules (PEFCR) [30] provide detailed and comprehensive technical guidance on how to conduct a Product Environmental Footprint (PEF) study for PV modules used in PV systems for electrical energy generation. The impact categories to be used to calculate the PEF profile of PV modules include the category ‘land use’ with the indicators biotic production, erosion resistance, mechanical filtration (of water) and groundwater replenishment in connection with the manufacturing of the PV modules, which are aggregated to a dimensionless index. The defined functional unit is 1 kWh of DC electrical energy at the outlet of the DC connector attached to the junction box of the PV module. The service life of the PV plant is defined with 30 years. The use stage of the life cycle should be modelled based on an optimally oriented module mounted on a slanted roof in Europe. The PEFCR guide explicitly limits the LCA results for comparison of different PV modules and point out that the scope of the LCA guide does not include comparisons of real installations neither of roof-top plants of different locations and module orientations nor with other energy systems.

Hazardous substances and substances of very high concern in photovoltaic modules

PV modules may contain a number of hazardous substances which are regulated by the European RoHS Directive [31], the REACH Regulation for chemicals [32], the CLP Regulation for labelling of substances [33] and those that are included in the European Chemicals Agency (ECHA) Candidate List of substances of very high concern (SVHC) [34]. All REACH and REACH Candidate substances carry immediate obligation for suppliers of the substance such as supplying a safety data sheet and communicating on safe use. Further ECHA has to be notified if a product contains a SVHC above a concentration of 0.1% (w/w). The RoHS Directive regulates the limitation of lead, mercury, chromium (VI), brominated flame retardants and a selection of phthalates of which max. 0.1% (w/w) each as well as cadmium max. 0.01% (w/w) is allowed to be included in electrical and electronic products. While the RoHS Directive, which excludes PV modules that are installed by professionals for permanent energy generation, defines the maximum concentration values of the regulated hazardous substances in ‘homogeneous materials’ that cannot be disjointed by mechanical actions, the REACH Regulation makes no further distinction in the material composition and disassembility or disjointability of the product. Since PV modules have a large glass fraction of the front cover and for some technologies front and back cover, the content of hazardous substances in the thin active layer may remain under the limit value of 0.1% of the total mass, although the PV module laminate is not a homogeneous material. The REACH Regulation requires the registration of articles if a product contains more than 0.1% (w/w) of a hazardous substance and the substance is ‘intended to be released under normal or reasonable foreseeable conditions of use’. However, the hazardous substances included in PV modules are not intended to be released, and therefore, a number of studies were performed investigating the leaching behaviour of hazardous substances of PV modules in operation and in damaged PV modules, which is discussed in the next section.

The REACH Regulation includes substances and compounds which may be included in thin film PV modules such as cadmium telluride and selenium which is alloyed into the CdTe absorber to increase the cell efficiency [35]. Concerning the SVHC Candidate List, PV modules may contain cadmium sulphide in the semiconductor layer, lead in solder and metallisation, and diarsenic trioxide in the module glass [36] and cadmium nitrate in solar cells [37]. CLP Regulation relevant substances include plasticisers used in cables, flame retardants used in inverter PCBs, diantimony trioxide in crystalline module glass as well as titanium dioxide and zinc dioxide used for antisoiling properties [36].

In the literature, different information can be found about the quantity of hazardous substances included in PV modules. One publication reports that silicon-based PV modules contain 10–20 g toxic lead per module, which is part of the solder the metallisation [38]. The module area is not mentioned, but assuming a standard module area of 1.6 m2, the lead content is 6.25–12.5 g/m2. Another publication indicates that the content of CdTe amounts to 18 g/m2 [39]. The results of a further study show that c-Si modules contain 6.32–6.68 g/m2 lead, CdTe modules contain 5.56–7.88 g/m2 cadmium and 6.24–8.4 g/m2 tellurium in compounds and CIGS modules contain 5.64 g/m2 indium [40]. A similar amount of cadmium is provided in a further study that reports 6 g Cd per module of 0.72 m2, that is 8.3 g/m2 [41].

The 2009 Ecoinvent report on photovoltaics provides following life cycle inventory data for PV modules: For silicon-based PV modules, the front side metallisation paste includes 5% lead, and the back side metallisation paste includes 8% lead. Further, the PV module includes 7.40 g/m2 of front side metallisation paste and 4.93 g/m2 of back side metallisation paste. Therefore, the total mass of lead of the metallisation results to 0.76 g/m2. CdTe modules include 3.52 g/m2 cadmium sulphide, 43.4 g/m2 cadmium telluride and 0.71 g/m2 lead. These life cycle inventory data are used in the Ecoinvent database, and particularly the value for cadmium telluride should be reviewed for newer technologies. There are no LCI datasets available for modules containing a larger amount of lead [42].

Leaching behaviour of damaged photovoltaic modules

Photovoltaic modules may contain a number of toxic substances, mainly metals, in small quantities depending on the technology type and generation of technology [43]. Under normal operating conditions of a PV plant, no hazardous substances are released from the semiconductor layers since they are chemically bound in the active layer and further embedded in the laminate and encapsulated against environmental influences. But in case of accidental breakage [44] or during end-of-life treatment of the PV module, liquids such as rainwater or landfill leachate can dissolve hazardous substances from the exposed edges. Whether the broken module is classified as hazardous or non-hazardous waste is determined by the concentration of metals during a standardised test procedure designed to simulate such leaching behaviour. There is a broad scientific discussion about the leakage behaviour of damaged PV modules in general and the suitability of standard test procedures, which is briefly summarised here [45,46,47].

The first studies by [45, 48] on leakage from CdTe and CIS modules were already carried out in the 1990s where worst-case metal concentrations from accidentally damaged thin-film modules were estimated. Weekly amounts of rainwater were exposed to crushed 0.5 m2 modules. Metal concentrations in these leachates showed higher aquatic toxicity for CdTe than for CIS modules, but both had a toxicity comparable to that of industrial wastewater. These concentrations were further used to estimate concentrations in two hypothetical scenarios: (a) water collected from a roof-top containing one broken module and (b) soil underneath a broken module resting on the ground for 1 year. Estimated zinc and cadmium concentrations in roof-top water from the CIS module were approximately two orders of magnitude below the German drinking water standard, and the selenium concentration was one order of magnitude lower. Cadmium from the CdTe modules was of the same order of magnitude as the drinking water standard. Leaving a broken module on soil for 1 year was estimated to increase soil concentrations by the same order of magnitude as the natural ranges of metals concentrations present in soil in most cases. With the exception of molybdenum, the increases were well below tolerable soil levels. The same author notes that the amount of metals released from accidentally damaged modules during their use can be expected to be orders of magnitude lower than the metals contained in waste modules after their use. Regulatory leaching tests for waste characterisation (German, Swiss, and the USA) showed that a CIS module only exceeded the zinc limit of the Swiss test, while a CdTe failed all three tests due to cadmium release.

In 2010, a Norwegian study [49] also investigated the leaching behaviour of CdTe modules. Their literature search revealed little on the human toxicity and nothing on the ecotoxicity of CdTe, but leaching tests showed higher mobilisation of tellurium than cadmium at a pH of 9.6, since cadmium is re-precipitated. Cadmium concentrations in leachate exceeded the limits for inert waste landfills, and the authors expected Cd to also exceed the limits for ordinary landfills at lower pH values. The study concludes that there is not currently enough documentation to assess the fate and toxicity during the use and disposal of CdTe modules. The authors recommend leachate tests, particularly at lower pH values.

A 2013 study by [50] analysed long-term leaching of metals and metalloids from damaged CIGS and organic PV (OPV) modules into different model waters and calculated environmental concentrations for several scenarios. While metals released by OPV were of little toxicological concern and far below conservative drinking water standards, roof-top acidic runoff from CIGS modules exhibited significant toxicity: leached cadmium concentrations from cadmium sulphide in the window layer would considerably exceed the acute toxicity concentrations for Daphnia magna (daphnia or water fleas are sensitive to pollutants in the water), and the calculated selenium and molybdenum concentrations were in the range for teratogenic effects. Both cadmium and lead leaching were mainly governed by the pH of the leaching solvent but not as much by the size of module pieces. Long-term experiments over a period of several weeks were considered by the authors to be most realistic, calling into question the results from current short-duration regulatory leaching protocols. The authors conclude by noting the high amount of lead from solder in c-Si modules that is of concern due to the dominant market share of this PV technology.

An earlier fate and exposure study by [41] was limited to cadmium from CdTe modules. The study considered a scenario of all cadmium in a broken roof-top array being swept by total annual rainfall amounts into the soil underneath the roof downspouts. These workers calculated concentrations at exposure points of air, soil and groundwater both for on-site workers and off-site residents with conservative assumptions (except for a neutral groundwater pH; when assuming a more acidic pH, the rainwater pH might have increased the estimated groundwater concentrations). Exposure to air and soil was found to be orders of magnitude below both Californian and German screening levels, while groundwater equilibrium concentrations were below both screening levels and background concentrations. The same research group also conducted an evaluation [51] of standard waste characterisation leaching tests in the USA, Germany and Japan with regard to their suitability for assessing the potential environmental impacts of CdTe module field breakage. They concluded that waste leaching tests may reflect conditions during a recycling process but can be more aggressive than PV field breakage conditions when it comes to particle size, solvent pH and treatment method.

Similarly to [51], another study [46] investigated the applicability of two US standard waste characterisation leaching tests to the leaching behaviour of PV waste (mc-Si and CIGS). The authors found that lead concentrations from mc-Si cells and modules exceeded the regulatory limit but only when measured for longer periods than specified by the standard tests. Leaching from CIGS modules exhibited similarly slow leaching of copper and selenium to eventually exceed regulatory limits. The authors attributed the slower leaching kinetics to the layering of the material. They concluded that the tested methods may not be valid for characterizing PV waste in landfills, and additional testing is needed to accomplish that.

A 2015 US study [47] investigated the behaviour of ground solid CdTe and CdSe in aqueous solutions simulating landfill leachate under two standard waste leaching test used by the USA and the California Environmental Protection Agencies. They found cadmium concentrations from CdTe that were 1500 and 260 times higher than the regulatory limit for the two test protocols. The authors also investigated the effect of different redox and pH combinations on the leachability and determined that acidic and aerobic conditions markedly increased the dissolution of both CdTe and CdSe, in keeping with thermodynamic predictions. Consequently, the authors recommend the recycling of CdTe-containing devices rather than their landfilling. A comment to this study by [52] argues that the initial concentration of CdTe in actual PV modules would be approximately three orders of magnitude lower than the concentrations used in the [47] study, with encapsulation further limiting the leaching potential. They also note that CdTe PV modules are being recycled commercially since 2005, with a 95% recovery of CdTe thin films.

In 2017, a German study [53] investigated the long-term leaching of metals from silicon (crystalline, with at least one Pb-containing solder ribbon; and amorphous), CdTe and CIGS photovoltaic modules. Two small (5 × 5 cm2) squares from the same module material were immersed in a buffered aqueous solution, at pH values of 3, 7 and 11, respectively. This was repeated for the other module materials, each experiment in triplicate. After 360 days, they found significant leaching in the acidic and oxidizing solutions. In particular, 1.4% (by mass) of the lead in the c-Si modules, and 62% of the cadmium in the CdTe modules is leached out in the pH = 3 solution. These amounts exceed the WHO standards for drinking water concentrations of the respective metals. The leached amounts after 1 day were at least 2 orders of magnitude lower, leading the authors to challenge the meaningfulness of short-term leaching tests. These results are questioned by Sinha and Wade [54] who argue—among other points—that the use of citrate as a buffering agent and its chelating action may have led to higher metals concentrations than would be found in acidic rainwater. In a commentary, the authors of the original study [53] have replied [55] that the type of counter ion used will not change the high sensitivity to the leachate pH.

The same research group investigated metals leached from milled (< 0.2 mm) PV modules as a function of time and of the pH of the leachate [56]. They report severe leaching of metals over the course of 8 weeks and found that 50% of the Cd in CdTe modules, and more than 15% of Pb in c-Si modules was leached out after 56 days when exposed to a ‘rainwater-like’ solution of pH = 3, rising to pH = 5 and 6, respectively, after 56 days. The leached amounts rose steadily during that time.

For emerging PV technologies, such as perovskite solar cells (PSCs), copper zinc tin sulphide (CZTS) and lead sulphide quantum dot solar cells (QDSCs), a study described in [57] investigated the life cycle toxicity of metals that are contained in water soluble components of these cells. The authors modelled leaching during the PV use phase by assuming a crack in the panel and accounting for the physiochemical properties of the metals. For copper and lead, the authors found a higher toxicity from damaged panels during the use phase than during the mining phase of these metals.

A recent study by [58] discusses the findings of previous leaching studies, citing [49, 56]. The authors note that—in addition to presenting equivocal results—both sources are laboratory studies and may not reflect the operating conditions in the field. Consequently, the authors analysed soil samples for bioavailable metal concentrations in the field, from an operational 750-kW c-Si PV installation that had been in operation for 5 years prior to sampling. They sampled three transects, one 30.48 m away and two directly underneath the PV panels. Neither cadmium nor lead soil concentrations were different between the transects, but selenium, strontium and barium increased markedly underneath the panels, while copper and zinc even decreased significantly. Selenium in particular approached the US regulatory risk threshold. However, selenium is not used in c-Si modules, and the authors suggest cement from panel foundations as a more likely source. They identified a need for more research on metal and metalloid soil burdens from the operation phase of PV panels.

End-of-life management of photovoltaic systems

The end-of-life (EoL) management of PV modules is regulated by the European e-waste Directive [10]. It covers all EEE used by consumers and EEE intended for professional use. It also explicitly includes photovoltaic panels. The terms ‘waste electrical and electronic equipment’ or ‘WEEE’ mean electrical or electronic equipment which is waste within the meaning of any substance or object which the holder discards or intends or is required to discard. It includes all components, sub-assemblies and consumables which are part of the product at the time of discarding [10, 59].

The e-waste Directive mandates that all WEEE have to be returned to convenient facilities, and they have to be accepted free of charge. The first facility of the end-of-life management chain covered by the e-waste Directive is as general rule the ‘gate’ of a registered regional collection scheme. It is prohibited that collected e-waste is disposed without undergoing proper treatment [10].

Waste treatment requirements for WEEE

The waste treatment of PV modules is regulated in several standards and technical specifications [10, 60,61,62,63,64,65,66,67,68,69,70,71,72,73,74]. Standard EN 50625-1 [63] regulates the general treatment requirements for collection, logistics and treatment of WEEE. PV modules have to be treated with special care and attention to avoid injury by broken glass as well as by electrical shock through dangerous voltage generated if the PV modules are exposed to light. The stored amount of WEEE of a treatment plant must only be as much as can be processed within 1 year. The sites for storage have to feature impermeable surfaces and weatherproof covering. The first waste treatment steps include, i.e. the removal of external electrical wiring and the removal of plastics with brominated flame retardants. Since PV modules are not covered by the RoHS Directive [31], it must be assumed that they contain brominated flame retardants in accordance with Appendix A.6.3.1 of the standard, unless there is explicit evidence that this is not the case.

The specific treatment requirements for photovoltaic panels are regulated in the standard EN 50625-2-4 [69]. It includes the separation between silicon-based and non-silicon-based PV modules and further the separation of the PV modules into different material fractions such as glass, metals, plastics and semiconductor layers. Generally, silicon-based and non-silicon-based PV modules are distinguishable by visual inspection; however, amorphous silicon (a-Si) panels may not be distinguished from non-silicon-based PV panels. The type plates of the PV system can be used to identify the material composition of the modules in the PHOTON database [75].

Silicon-based PV modules can contain hazardous substances such as lead, lead oxide and fluorine. The separation of metallic lead or lead-based solder can be carried out by eddy current devices, induction sorting systems or optical/electrical sorting systems. Non-silicon-based PV modules can contain lead, cadmium, cadmium sulphide, selenium and fluorine. The treatment has to ensure that hazardous substances are removed from the semiconductor layer including the electrical contacts. The removal of lead, selenium, indium (as valuable material) and cadmium could be carried out by chemical and physical treatment, which is not further described [69].

The technical specification for de-pollution of PV modules is regulated in the pre-standard DIN CLC/TS 50625-3-5 [70], supplementing the standards [63, 69]. It regulates the normative requirements such as target values and limit values of analysis for the glass fraction, which is returned to the material cycle. The limit values for the dry mass of the glass fraction of silicon-based PV modules are 1 mg/kg cadmium and selenium, respectively, and 100 mg/kg lead. The limit values for the dry mass of the glass fraction of non-silicon-based PV modules are 10 mg/kg cadmium and selenium, respectively, and 100 mg/kg lead. The limit values for cadmium and selenium represent the removal and separation of 95% of the semiconductor layer [70].

The state of the art recycling technology for photovoltaic modules

The state of the art of PV module recycling includes that after removing the junction box and the aluminium frame; the modules are shredded or crushed. The glass fraction is prepared for re-use for low quality applications such as glass wool. The EVA foil undergoes thermal treatment by incineration. Silver and indium compounds and metals are refined [76].

The current minimum recovery targets for PV modules are that 85% should be recovered, and 80% should be prepared for re-use and recycling [10]. The recovery targets however solely relate to glass and aluminium recycling. The main economical and technological challenge of the PV recycling process is the delamination, separation and purification of silicon from EVA/glass and the semiconductor thin film of other module technologies from the front/back sheet glass, respectively [76]. In case of Si-based PV modules, all non-Si layers, that is metallisation, antireflection coating, emitter and back surface field, have to be etched away before the silicon can be used for the ingot growing [77].

Currently, silicon recovered from primary recycling of both kerf and EoL PV-modules has low quality and cannot be used for the production of silicon wafers. The research aim is to produce secondary silicon with a purity of, e.g., 99.9999% with a lower carbon footprint than virgin silicon material [78]. One of the major technological and economical challenges is the recovery of pure silicon, which has to be separated from adhesives, metallisations and other impurities, to gain high quality raw materials for new silicon wafers. The research trends for EoL Si-PV modules treatment are towards chemical recovery or different combinations of mechanical, chemical and thermal recovery [79].

A comprehensive summary and patent review of global recycling technology trends for PV modules can be found in the IEA PVS-Report [79]. A further systematic quantitative literature review investigated 70 research papers with regard to EoL treatment and management of PV plants. The reviewed studies cover waste treatment, policy and management, the projection of PV waste generation, reverse logistics and life cycle assessment. Critical recycling challenges are, e.g., the reduction of gas emissions and temperature during the delamination process, decreasing of chemicals utilisation and chemical waste production and achieving a high level of purification. The authors note that end-of-life studies are mostly conducted in laboratory settings and that results are lacking for forecasts of PV waste streams, suitable recycling technologies and waste logistics and policies [80]. A further EoL review study also included battery storage systems. The authors identified a trend away from the dominance of experimental end-of-life studies towards modelling and simulation studies [81].

In the European Union, the end-of-life management and legal compliances service of PV modules is offered by the association PV CYCLE, which is significantly involved in research activities for new recycling technologies and decommissioning logistics [82].

Recycling fees and decommissioning costs

In general, the costs for the end-of-life treatment and recycling of e-waste are paid in advance by the manufacturer in the EU. However, the fees cover the costs of the waste treatment only from the beginning of the collection scheme [10] excluding the dismantling and the transport to the collection site. To compare recycling costs of e-waste, in Austria, examples of the fees without tax for household appliances are the following: € 5.80 per piece for screens and monitors with a mass of 10 to 25 kg, € 6.10 per piece for temperature exchange equipment, € 0.17 per piece for (other) large appliances with a mass of 6 to 30 kg. The fees for commercial appliances are 15 to 30% less. The recycling fees for lithium batteries are € 0.61 per kilogramme [83].

In the EU, the logistics and the economical implementation of end-of-life PV modules are still under development and depend on the profitable recovery of the waste fractions. The main material fractions of Si-based PV modules are about 70% glass, 13% aluminium, 11% polymer, 3% silicon, 1% copper, 2% junction box and 0.03% silver. Thereof, the highest economic values of the recycled materials consist of estimated 45.4% for silicon, 24.6% for silver and 18.6% for aluminium. The glass fraction only represents an economic value of 4.9% [76]. The glass fraction of frameless CdTe PV modules has a mass share of 95% [84].

Two financially and legally independent procedures have to be developed for future large-scale end-of-life management of free-field PV plants in Europe: On the one hand, according to WEEE, the fee covering the recycling costs for the manufacturer has to be determined. On the other hand, local logistics and finance models have to be developed to ensure decommissioning and transport of end-of-life free-field PV plants. It can be expected that a significant number of PV plant owners will have no financial reserves to cover decommissioning and transport costs in about 20 years when fields of the first PV installation peak in Europe from 2010 to 2012, see Fig. 5, face decommissioning.

Future PV module recycling logistics include different models, such as mobile recycling systems in form of trucks which are temporarily installed near the free-field PV systems, or large centralised recycling plants located near PV manufacturers or near glass manufacturers to optimise transportation efforts and emissions [76]. However, it must be taken into account that in each case, local permits for the temporary installation of the mobile recycling system must be clarified.

There is little literature on the costs of decommissioning, transport and disposing or recycling of PV systems. A Swiss study developed a new financial model to determine the optimal time and location to invest in PV module recycling systems in the USA including different parameters such as time-dependent storage and treatment costs and market prices for recovered materials, transportation, utilisation rate and recycling yields of PV module material fractions for different scenarios [85].

The EU research project CABRISS calculated a scenario for average transportation costs for dismantled PV modules to the next glass recycling system in the EU. Within a radius of 500 km, the costs result to 250 EUR/t based on average costs of 0.5 EUR/tkm [78].

The New York Solar Guide Book recommends landowners who lease their land to contractually make sure that there are provisions that determine who is responsible for dismantling the PV system if the company is no longer in business or if the PV system is at its end of life, ensuring the property is returned to its pre-leased condition. The estimated current costs of decommissioning are USD 60,200 for a 2 MW free-field PV system. Thereof, USD 2250 are estimated for the transportation to the recycling centre [86]. The Resources for the Future (RFF)-Report provides estimations of the decommissioning costs for PV systems between USD − 89,000 to USD 179,000 per MW installed power. The negative cost estimates indicate that the salvage value of the materials exceeds the decommissioning costs [87].

A further study presents the results of different decommissioning scenarios for large-scale PV plants based on a free-field PV plant with 2711 modules/MWac with a module area of 2.47 m2/module and a mass of 35 kg/module installed on an area of 7.1 acres/MWac (= 2.87 ha/MWac). The direct and indirect decommissioning costs vary between USD 123,600 and USD 151,000 per MWac plus recycling costs of about USD 32,000 and landfill costs for the residual PV plant materials of USD 6000 per MWac, respectively. This compares with an estimated scrap value of steel, copper and aluminium between USD 109,000 and USD 220,000 per MWac. Excluding the land value, the net decommissioning costs are between USD − 79,400 and USD + 54,200 per MWac, whereby the negative value represents the net profit. Otherwise expressed, the recycling costs are estimated with USD 0.34 (= EUR 0.31) per kilogramme module, and the scrap value of the entire decommissioned PV plant referred to 1 kg module unit is between USD 1.15 and USD 2.32 (= EUR 1.06 and EUR 2.14) per kilogramme module. The scenarios with a net profit are only achievable by the removal and recycling of steel, copper and copper cables. The provided data for copper are 1.166 kg/m2/module, 5001 kg/MWdc included in the plant equipment and a cable length (trays) of 1700 LF/MWac (= 518 m/MWac) with a total copper scrap value of about USD 100,000/MWac [88]. The copper content seems to be set very high since according to the Ecoinvent database, the copper content in silicon PV modules is stated with 0.113 kg/m2 [28].

The European Commission investigated the WEEE management practices in the EU28. There are few countries which already have particular statistics and recycling fees for PV modules. Currently, PV modules are included in the category ‘large equipment’ of the WEEE Directive ([21]; Annex IV). In 2014, the Netherlands had a WEEE collection rate of 44% excl. solar panels and 45% incl. solar panels based on the relations of put-on-the-market and waste-collection data. In 2016, the Czech Republic regulated a minimum producer fee for EoL management for solar panels of 8.50 CZK/kg (= 0.34 EUR/kg). That is EUR 6.12 per module with a mass of 18 kg [89].

Recycling versus re-use/export of photovoltaic modules

The WEEE Directive [10] aims to avoid unwanted shipments of non-functional electrical and electronic equipment to developing countries according to the Basel convention [90] and the European Regulation on waste disposal [91], respectively. Annex I of the Basel Convention includes waste having as constituents, e.g. compounds of copper, zinc, arsenic, selenium, cadmium, tellurium and lead. Annex VIII explicitly includes waste electrical and electronic assemblies or scrap (No. A1180) which is contaminated with substances mentioned above. However, A1180 excludes scrap assemblies from electric power generation. In contrast to Annex VIII, Annex IX excludes waste electrical and electronic assemblies (No. B1110), e.g. under the condition that hazardous materials are included only in low concentration not causing them to exhibit an Annex III characteristic such as harmful, toxic or ecotoxic (see also EU Directive on hazardous waste [92]).

The study of Wade et al. investigated the economics of potential re-use, recycling and disposal scenarios of EoL PV modules. The study concludes that the re-use, and therefore the export out of Europe, is unlikely since future PV modules are expected to be relatively inexpensive and of higher efficiency. It is expected that the commercial scrap value of high-value recycling will exceed the decommissioning and transportation costs [88].

The potential environmental impact of hazardous substances in PV modules in the cases of recycling or replacement for re-use inside or outside of Europe can be mitigated by implementing ecodesign requirements and green public procurement criteria, which are currently under development. The requirements include the repairability of the module in the case of replacement of the bypass diodes in the junction box and the possibility to replace the whole junction box of the module. Concerning the recycling process, manufacturers should provide information regarding the possibility to separate and recover the semiconductor layer from the frame, glass, encapsulants and backsheet. On the material level, manufacturers have to declare the content in grammes of antimony, cadmium, gallium, indium, lead, silicon metal, silver and tellurium and the type of polymers including fluorinated additives of the encapsulant and backsheet of the module. Concerning inverters, the manufacturers should declare the content in grammes of lead, cadmium, silicon carbide, silver, indium, gallium and tantalum. Ecolabel criteria for residential PV systems include the restriction of lead, cadmium, flame retardants and phthalates according to the RoHS directive [31] and SVHCs according to the Material Declaration Standard IEC 62474 [93], respectively. Glass has not to include additives such as antimony and arsenic > 50 ppm [36].

Conclusions

The study investigates the spatial distribution of free-field photovoltaic plants in Europe by Google mapping and compares the ratio of installed power of free-field to roof-top PV systems for a local case. The question of land use and land competition is discussed for different assessment methods for land transformation and land occupation. Likewise, a comprehensive literature review addresses key issues of hazardous constituents and their leakage in the case of module breakage, as well as end-of-life issues ranging from requirements for PV module waste treatment to financial issues concerning decommissioning of end-of-life PV systems and to module recycling technologies and module re-use.

Our investigation shows that there are approximately 17,000 free-field PV plants on the commercial, industrial and utility scale installed all over Europe reflecting trends in the available national statistical data. At the end of 2017, the cumulative installed PV power in the EU28 was 115 GWp. The construction boom of PV plants had its peak in 2011. In countries with a large number of free-field plants, it is not clear to what extent roof-top plants account for energy production. A case study inventory of a Central European region shows a small share of about 5% based on mainly residential and few commercial scale roof-top PV plants. A survey of satellite images showed that Italy has a relatively high level of installed PV plants on large flat roofs, but their share in total energy production could not be estimated. However, the literature review and satellite image survey give the impression that the potential energy production share of roof-top systems is overestimated and that a significant increase of PV energy could only be achieved with a continuing rapid expansion of larger free-field systems.

It is recommended to conduct a broader scientific debate on land sealing and land competition as well as more detailed analyses of the land occupation of energy systems in different regions. Currently, free-field PV plants are predominantly installed in lowlands and on arable land and forest areas according to the satellite images and topographic maps. In some regions, the density of PV plants appears to be very high. The common calculation method based on one-time land transformation is insufficient to reflect the annual land competition for infrastructure and settlements, food and feed production, energy production, chemical and textile raw materials and the preservation of natural habitats. Furthermore, to properly compare the land use of energy systems, secondary effects have to be considered such as recovery time of the transformed land into the original state and impacts on the water balance in the case of fossil energy sources on the one hand and land damages by extracting lithium for storage batteries for volatile renewable energy sources, on the other. These questions call for trans-regional and global spatial energy planning.

Most PV modules contain a small but non-negligible amount of hazardous substances. They are unlikely to affect the environment during normal operation of the system, since the substances are chemically bound and encapsulated against environmental influences. Literature provides average data concerning the type and amount of hazardous substances in PV modules, and there are PV technologies available that operate without hazardous substances. However, detailed material composition data of specific module technologies and their spatial distribution are not available, especially as technologies changed continually over the years. A mandatory and publicly accessible declaration of the material composition of PV modules would be necessary for a more complete environmental life cycle assessment.

In the case of end-of-life module breakage, the lamination and protective encapsulation is destroyed, and hazardous constituents could be leached into the environment. There seems to be an emerging consensus in the literature that the leaching behaviour of metals from PV module pieces of various sizes is inadequately described in the current waste characterisation protocols that typically last 1 day. Measurements over weeks and months reveal significant losses of lead from c-Si modules and cadmium from CdTe modules in the range of tens of mass percent, but only if the leaching solution is acidic with pH values of 3–5; neutral pH appears to cause little leaching of these metals. Results of subsequent fate and toxicity modelling are less conclusive—they vary with the element and the module technology studied and also with the assumed scenarios (dilution and pH of leaching solvent). Only one study was found that sampled the soil underneath an operating PV plant that had begun operations 5 years earlier, with results that underline the need for more research into measured impacts of real PV plants in the field.

The end-of-life management of photovoltaic systems will face major challenges when the first large scale free-field plants reach the end of their lifetime in about 15 years. Even though the waste treatment requirements and financing of PV module recycling and disposal in the European Union is regulated by the WEEE Directive, some major legal, financial and technological questions are still open. One key issue is the classification of PV modules as hazardous or non-hazardous waste, since there is a small amount of hazardous substances included dependent on the module technology. The classification depends on the country-specific limit values for hazardous substances and the leakage behaviour of the respective toxic metals.

The second key issue is the financing of the decommissioning of PV plants, which is not covered by the WEEE Directive. In the literature, there are several positive and negative scenarios about costs and proceeds of decommissioning and recycling, particularly for large scale PV plants. The aim is to finance the entire waste treatment from the proceeds of the recycled raw materials and the mandatory producer fees. The valuable materials are steel, copper, silver and aluminium. However, the content and salvage value of copper seems to be overestimated. In the case of silicon-based PV modules, there are major research efforts to produce profitable secondary silicon with a lower carbon footprint than virgin silicon material but with a comparable purity. Other scenarios include the re-use and export of PV modules which is theoretically legal, since assemblies from electric power generations are not covered by the Basel Convention. In any case, it must be ensured that inoperable free-field PV plants of all scales do not remain on-site for decades due to a lack of financial means for decommissioning.

Availability of data and materials

Detailed geographical data of the mapped photovoltaic plants are not available as datasets, but they are verifiable at any time in Google Earth. All other literature and data generated and/or analysed during this study are included in this published article and/or provided as open data according to the references.
